RAG Pipelines Explained: Setup, Tools, and Strategies
Discover how to build RAG pipelines step by step, including key components, benefits, and tools to scale LLM applications with real-time data.
June 5, 2025
Author(s)
Key Takeaways
RAG pipelines enhance LLM performance by retrieving real-time, domain-specific data at inference.
Core components of a RAG pipeline include data ingestion, embedding generation, vector storage, retrieval, and prompt-aware generation.
Platforms like Orq.ai streamline the end-to-end RAG workflow, making it easier to build, evaluate, and deploy RAG applications at scale.
Large Language Models (LLMs) have dramatically changed how teams interact with and generate content from unstructured data. From drafting emails to summarizing legal documents, LLMs are reshaping knowledge work. But despite their impressive capabilities, these models come with a significant limitation: they operate on static knowledge. Once trained, an LLM’s understanding of the world is frozen, making it ill-equipped to answer questions based on new, real-time, or proprietary information.
That’s where Retrieval-Augmented Generation (RAG) comes in. By combining the generative power of LLMs with the precision of search systems, retrieval augmented generation RAG pipelines allow models to pull in relevant, up-to-date data before generating a response. This approach bridges the gap between a model’s fixed training data and the evolving, domain-specific knowledge organizations rely on. Whether it's querying internal wikis, customer data, or technical documentation, RAG enables more accurate and context-aware outputs, without retraining the model itself.
As companies explore deploying RAG pipelines for production at scale, they face new questions around tooling, performance, and data privacy. In this guide, we’ll walk through what RAG is, how it works, the components of a typical pipeline, and how to build one step-by-step.
Understanding Retrieval-Augmented Generation (RAG)

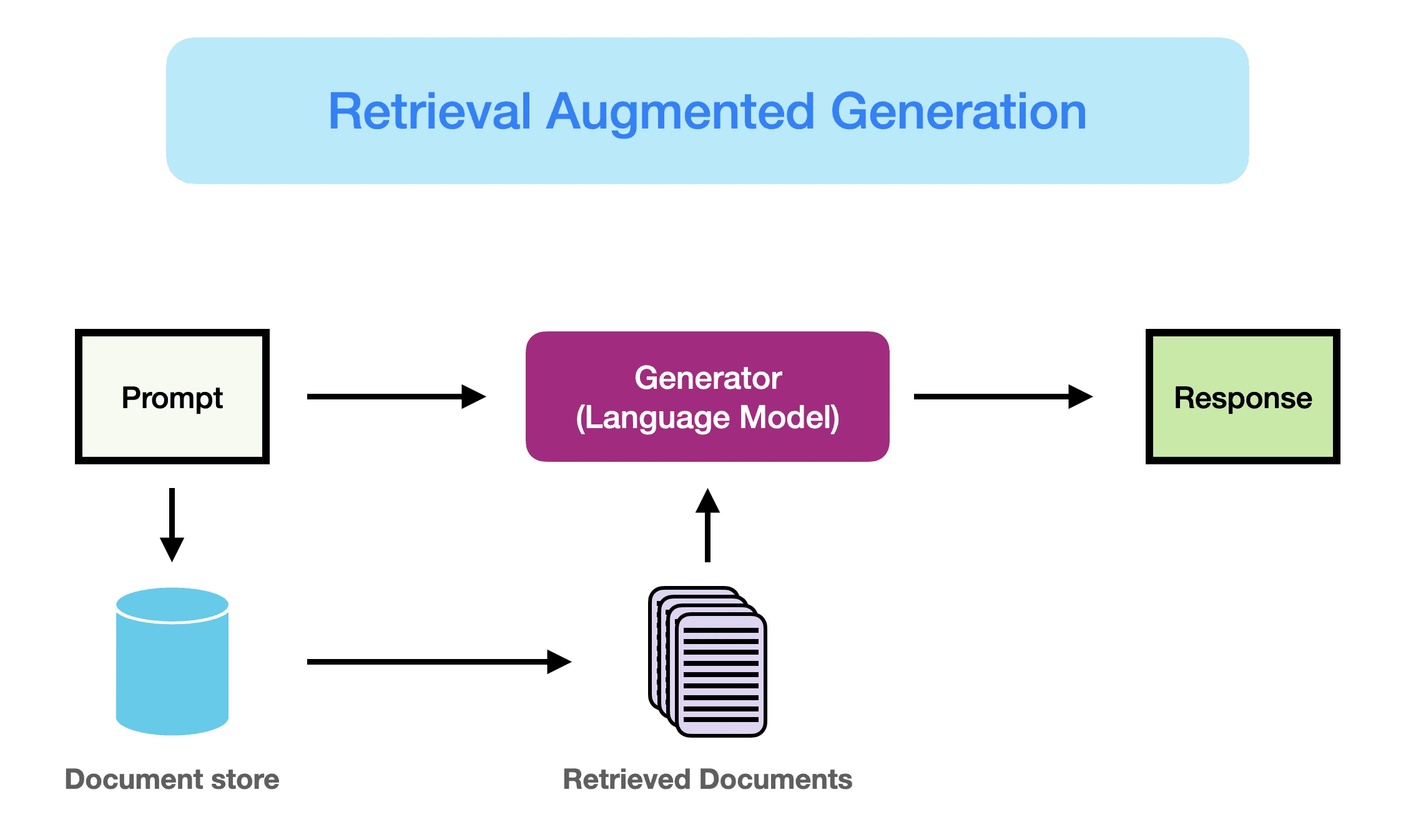

Retrieval-Augmented Generation (RAG) is a technique that optimizes the output of large language models by connecting them to external knowledge sources at the time of inference.

Credits: Gettectonic
Instead of relying solely on an LLM's pre-trained knowledge, a RAG pipeline retrieves relevant external information in real time and injects it into the prompt before generating a response. This creates more accurate, relevant, and trustworthy outputs, especially in scenarios where precision and up-to-date knowledge are critical.
Here's how it works in practice:
Retrieval: The system uses vector search to locate semantically relevant documents or passages based on the user’s query.
Preprocessing: Content is prepared using document loaders, text-splitting, and data indexing, allowing for fast and effective similarity search.
Storage: The pre-processed content is stored in a vector database as embeddings, which are dense, numerical representations of text.
Augmented Generation: Retrieved documents are merged with the user’s query to provide rich context information for the LLM, resulting in a more accurate and informed response.
Compared to traditional LLM responses, which rely on static training data and often “hallucinate” details, RAG-augmented outputs are grounded in real data. This makes them especially useful in high-stakes use cases like enterprise search, legal tech, customer support, and healthcare, where factual accuracy is essential.
As RAG evolves, advanced approaches like agentic RAG are emerging, enabling autonomous agents to dynamically plan, retrieve, and reason across knowledge in more complex workflows.
Benefits of Implementing RAG Pipelines
Organizations building production-grade LLM pipelines face a common challenge: how to deliver accurate, timely, and trustworthy outputs without constantly retraining their models. RAG pipelines solve this by enriching model responses with real-world, up-to-date data, unlocking several key benefits across AI applications, from internal tools to customer-facing chatbots and intelligent assistants.
1. Enhanced Accuracy
One of the most powerful advantages of RAG is its ability to significantly reduce hallucinations, which are fabricated or misleading outputs that LLMs can produce when they lack the necessary context. By grounding responses in real, retrieved content, RAG ensures that what’s generated is not only coherent but factually anchored. This is especially critical in sensitive domains like healthcare, finance, and law, where even small errors carry big consequences.
2. Real-Time Relevance
Traditional LLMs are trained on static datasets and don’t know about events or updates that occur post-training. RAG overcomes this by retrieving information dynamically at the time of the request. Whether it’s product documentation, market data, or internal reports, RAG pipelines allow your model to reflect the latest available insights, without retraining or fine-tuning. This makes them ideal for rag apps that need to stay in sync with ever-changing business or user contexts.
3. Data Privacy and Control
With RAG, your proprietary data stays within your environment. You’re not pushing your internal knowledge bases or customer data to third-party APIs or cloud models. Instead, the retrieval layer gives you control over what data is accessed, when, and how. This makes RAG an excellent option for use cases where data privacy and regulatory compliance are non-negotiable.
4. Improved User Trust
RAG responses can be linked back to their source documents, giving end users full transparency into where the information came from. This verifiability enhances trust, especially for LLM use cases like chatbots that serve as knowledge assistants, support agents, or onboarding guides. When users can trace the answer back to a trusted internal source, they’re more likely to rely on and adopt the AI solution.

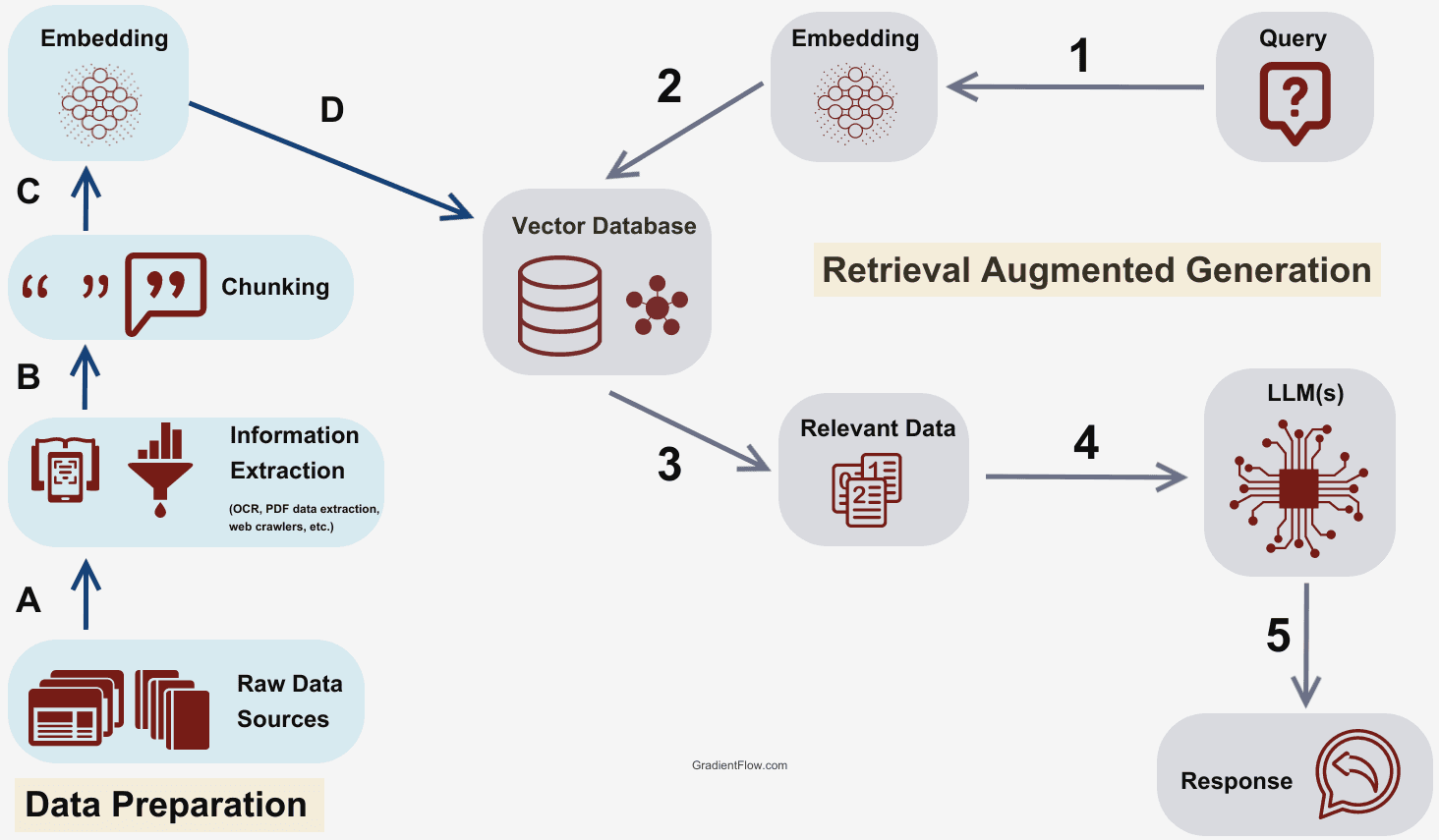

Core Components of a RAG Pipeline
Building a high-performance RAG workflow requires integrating multiple moving parts into a well-orchestrated system. From document ingestion to real-time data access, every step in the RAG architecture plays a critical role in grounding responses with reliable and relevant information.

Credits: Substack
Below is a breakdown of each core component in a typical RAG model architecture.
1. Data Ingestion
The pipeline begins with collecting content from various internal and external sources such as PDFs, help center articles, spreadsheets, CRM data, and APIs. This document ingestion phase is foundational: without comprehensive and relevant data, downstream results will be limited in value. In enterprise settings, ingestion workflows often include automated connectors to sync data from live systems for up-to-date coverage.
2. Preprocessing and Chunking
Raw data isn’t usable as-is. Before anything can be embedded, the content must be cleaned, normalized, and split into manageable units, a process called document pre-processing. This often involves removing HTML tags, correcting encoding errors, or standardizing formatting. Once cleaned, the data is “chunked” using text-splitting techniques to divide large bodies of content into semantically meaningful blocks optimized for retrieval and generation.
3. Embedding Generation
In this phase, each text chunk is transformed into a dense numerical representation called an embedding. This embedding generation process captures the semantic meaning of content in a format that can be compared with user queries. Selecting the right model for generating embeddings is crucial, as it directly affects retrieval precision and overall pipeline performance. This is a vital step in any modern LLM pipeline.
4. Vector Storage
Once embeddings are created, they are stored in vector databases designed to perform rapid similarity search at scale. These specialized databases, such as FAISS, Pinecone, or Weaviate, allow the pipeline to retrieve relevant chunks based on semantic proximity rather than simple keyword matching. Efficient data embedding and storage are what enable lightning-fast retrieval in production environments.
5. Retrieval Mechanism
When a user submits a query, the system performs a semantic search against the stored embeddings to fetch the most relevant chunks. This retrieval layer is the engine of the RAG workflow, and it ensures the language model has the right context to work with. Fine-tuning your retrieval logic by filtering by metadata or applying reranking algorithms can significantly boost relevance and reduce noise.
6. Generation Phase
Finally, the retrieved data is passed alongside the user query into the language model. This is where prompt engineering comes into play: structuring the input effectively ensures the model understands what to do with the retrieved context. The result is a coherent, contextually grounded response that bridges the gap between static knowledge and real-time data access.
Step-by-Step Guide to Building a RAG Pipeline
Building an effective RAG pipeline involves a series of strategic decisions, from selecting the right tools to preparing your data and integrating with LLMs. Each step plays a critical role in ensuring the system delivers reliable, real-time, and contextually relevant outputs.
Selecting the Right Tools
When it comes to building a reliable and production-ready RAG pipeline LLM system, choosing the right tools is often the first, and most daunting, step. The current ecosystem offers a variety of frameworks, including:
LangChain: Langchain is a popular framework for chaining together LLM prompts, retrieval steps, and agents.
LlamaIndex: Focuses on rag data ingestion and indexing from structured and unstructured sources.
Haystack: Built with enterprise search in mind, offering an open-source NLP framework with pluggable modules.
Custom Python stacks: Often used by ML engineers for complete control over every layer of the generation pipeline.
While powerful, these tools come with steep trade-offs:
High complexity and steep learning curves, particularly for teams without extensive ML or DevOps backgrounds.
Code-heavy implementations, limiting experimentation and collaboration with non-technical stakeholders.
Fragmented workflows, requiring constant context-switching between embedding models, vector databases, and LLM orchestration layers.
Tooling sprawl, which slows down iteration, increases maintenance overhead, and complicates scaling.
For many teams, this results in slower delivery of RAG applications, inconsistent performance, and limited cross-functional participation.
Orq.ai: Generative AI Collaboration Platform
Orq.ai is a Generative AI Collaboration Platform where software teams bring LLM-powered software from prototype to production safely. By delivering the end-to-end tooling needed to operate LLMs out of the box, Orq.ai empowers software teams to build LLM apps & agents from the ground up, operate them at scale, monitor performance, and evaluate quality.
For teams building and deploying RAG pipelines, Orq.ai provides the infrastructure to manage both the technical complexity and the collaborative needs of real-world LLM applications, ensuring that the entire RAG workflow, from document ingestion to generation, is observable, testable, and production-ready.

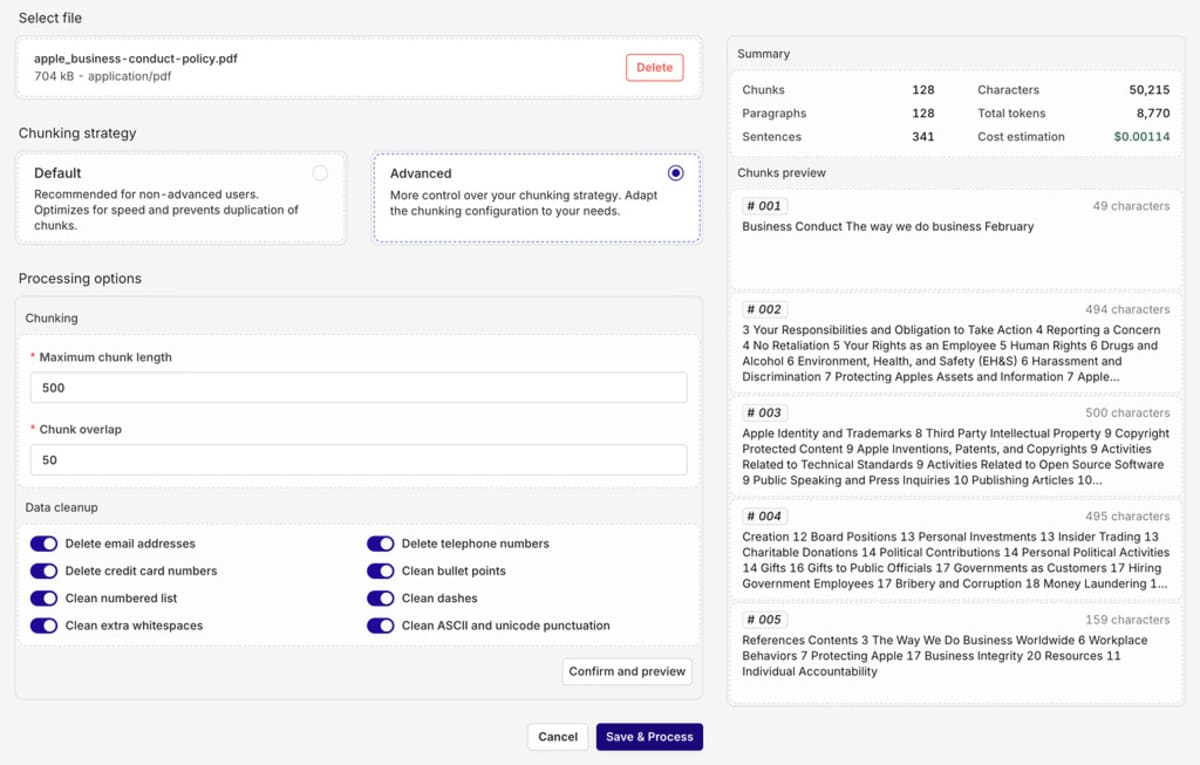

Overview of RAG UI in Orq.ai
AI Studio for non-technical users to safely edit prompts, tweak LLM configurations, and experiment with variants without writing code
Code-first RAG pipeline support for developers to design, orchestrate, and maintain robust pipelines across the full RAG workflow
Visual tracing that lets you inspect every event in an LLM pipeline, including document retrieval, generation steps, and agent behaviors
Prebuilt integrations with leading vector databases, embedding models, and LLM providers to accelerate setup and streamline iteration
Collaboration-first architecture that enables product managers, engineers, and analysts to co-create and validate LLM-powered experiences
Built-in evaluation tooling like RAGAS, LLM-as-a-judge, and human feedback loops to monitor and continuously improve app performance
Create an account or book a demo with our team to explore how Orq.ai can help you build, evaluate, and scale reliable RAG pipelines.
Data Preparation
Effective data preparation is a critical first step in building robust RAG pipelines. Raw data must be carefully cleaned, normalized, and chunked to ensure that the retrieval process surfaces the most relevant and accurate information.
Start by cleaning the data. Remove duplicates, correct formatting errors, and filter out irrelevant or low-quality content. Consistent normalization helps standardize text formats, making it easier to process diverse data sources uniformly.
Next, apply chunking or text-splitting techniques to break large documents into manageable pieces. This allows the embedding models to generate more precise vector representations and improves the granularity of the retrieval step.
Proper data preparation is essential for mitigating hallucinations in the generation phase. When the retrieval step surfaces well-structured, relevant chunks, the LLM has a stronger factual basis to ground its responses, reducing the chance of fabrications or errors.
Thorough data preparation also plays a key role when evaluating RAG pipelines. Clean, well-structured input ensures that performance metrics accurately reflect the pipeline’s ability to retrieve and generate high-quality outputs, enabling continuous improvement.
Embedding Models
Selecting the right embedding model is a crucial decision when building RAG pipelines, as it directly impacts the quality of data retrieval and, consequently, the accuracy of generated responses.
Popular embedding providers include OpenAI, Cohere, and HuggingFace, each offering models optimized for different types of text data and use cases. When choosing an embedding model, consider factors such as:
Semantic understanding: The model’s ability to capture the contextual meaning of text to enable effective similarity and vector search
Performance and latency: How quickly embeddings can be generated, which affects real-time data access and responsiveness
Compatibility: Ease of integration with your vector databases and overall pipeline architecture
Cost: Pricing models vary between providers and can impact scalability, especially in large deployments
It’s often beneficial to experiment with multiple embedding models in the early stages of pipeline development to evaluate which produces the most relevant retrieval results for your specific domain and data.
Vector Databases
Selecting the right vector database is pivotal for the efficiency and scalability of Retrieval-Augmented Generation (RAG) pipelines. Here's a comparison of some leading options:
Orq.ai
Overview: Orq.ai offers a built-in vector database as part of our Knowledge Base feature, designed to simplify the setup and management of your RAG workflows.
Strengths: Provides out-of-the-box support for vector storage and retrieval, reducing setup complexity. It also allows for embedding domain-specific or business-specific information, ensuring that data fed into the RAG pipeline is both contextually correct and accurate.
Considerations: While it's integrated within the Orq.ai platform, users seeking standalone vector database solutions might consider other options.
Chroma
Overview: Chroma is an open-source vector database designed for machine learning applications.
Strengths: User-friendly, supports semantic search, and integrates well with Python-based ML workflows.
Considerations: May require additional setup for large-scale
Pinecone
Overview: Pinecone is a managed vector database service optimized for high-performance similarity search.
Strengths: Scalable, low-latency, and offers built-in integrations with various ML frameworks.
Considerations: Pricing can scale with usage; reliance on external infrastructure.
Weaviate
Overview: Weaviate is an open-source vector search engine that combines machine learning and graph database capabilities.
Strengths: Supports hybrid search, integrates with knowledge graphs, and offers a flexible schema.
Considerations: Setup and maintenance can be complex; may require tuning for optimal
FAISS
Overview: FAISS is a library developed by Facebook AI Research for efficient similarity search and clustering of dense vectors.
Strengths: Highly efficient for large-scale vector search; supports multiple indexing strategies.
Considerations: Primarily a library; requires custom infrastructure for deployment
Orq.ai offers seamless integration with third-party vector databases, allowing teams to leverage their preferred data storage solutions while benefiting from Orq.ai's advanced RAG capabilities. This integration enables:
Custom Retrieval Settings: Configure vector search parameters, chunk limits, and relevance thresholds to tailor the retrieval process to specific needs.
Reranking Models: Implement models that analyze and rank retrieved data based on relevance, enhancing the quality of generated responses.
Granular Control: Manage chunking, embedding, and retrieval strategies to ensure data is clean, secure, and efficiently stored.
Observability: Gain insights into retrieval performance with detailed logs and metrics, facilitating optimization and debugging.
Integration with LLMs
A key part of any RAG pipeline is effectively combining the retrieved content with the prompt fed into the LLM. This integration ensures that the AI model generates responses grounded in relevant, up-to-date information.
Combining Retrieved Content with Prompts
Once the RAG pipeline retrieves relevant documents or data chunks, these are incorporated into the prompt that is passed to the LLM. This process typically involves:
Inserting retrieved passages as additional context alongside the user query
Ensuring the combined input stays within the model’s maximum token limit to prevent truncation or loss of information
Structuring the prompt so the LLM can differentiate between user queries and retrieved context, often through clear delimiters or prompt engineering techniques
Managing Prompt Templates and Context Limits
Prompt templates are pre-defined formats that structure how queries and retrievals are combined. Managing these templates efficiently is critical because:
They allow consistent formatting across different queries and use cases
Proper design helps the LLM interpret the retrieved context accurately, improving the quality of generated output
They help in controlling prompt length, which is essential due to context window limitations in LLMs (e.g., token limits)
Strategies for managing context limits include:
Prioritizing the most relevant retrieved content for inclusion based on similarity scores or business rules
Using text-splitting techniques to segment larger documents into manageable chunks
Employing prompt engineering best practices to craft clear, concise instructions and context for the LLM
RAG Pipelines: Key Takeaways
RAG pipelines represent a powerful advancement in the way LLMs interact with external knowledge, enabling AI applications to deliver accurate, relevant, and context-rich responses. By integrating dynamic data retrieval with generative models, RAG addresses the limitations of static training data and mitigates common challenges such as hallucinations and outdated information.
For teams looking to build, deploy, and scale RAG applications within their LLM-powered software, having a unified and robust platform is essential. Orq.ai serves as an end-to-end solution that supports the entire lifecycle of RAG pipelines, from data ingestion and embedding generation to retrieval tuning and prompt engineering. With advanced observability, seamless integrations with vector databases and LLM providers, and collaboration tools that bridge technical and non-technical roles, Orq.ai empowers teams to operationalize LLMs with confidence and efficiency.
Create an account today to explore how Orq.ai can accelerate your journey from prototype to production, delivering reliable and scalable RAG-powered applications that drive real business value.
