RAG Architecture Explained: A Comprehensive Guide [2025]

Large Language Models (LLMs) are transforming how we search, write, code, and communicate. But even the most powerful models have a blind spot: they generate content based solely on what they were trained on. That means no access to real-time information, no knowledge of niche or internal datasets, and sometimes, no regard for factual accuracy.

This is where Retrieval Augmented Generation (RAG) comes in. Instead of relying only on pre-trained knowledge, a RAG system pulls in external data sources on demand, blending them with the model's generative capabilities to produce more relevant, factual, and personalized outputs.

As teams push LLM-based applications into production, they’re finding that traditional Generative AI (GenAI) models alone can’t meet the needs of real-world use cases, especially in enterprise settings. Problems like hallucinated responses, outdated information, or a lack of domain-specific nuance can erode user trust and limit adoption. A rag pipeline helps solve this by grounding outputs in dynamic, retrievable content.

In this article, we explore what RAG architecture is, how it works, the different types of implementations, and why it's a cornerstone of LLM product development. Whether you're building your first rag AI prototype or optimizing a full-scale application, understanding the mechanics and advantages of RAG can make all the difference.

Understanding Retrieval-Augmented Generation (RAG)

At its core, Retrieval-Augmented Generation (RAG) is a framework that allows large language models (LLMs) to generate content with real-time access to external knowledge. Rather than relying solely on the static information captured during training, a RAG model retrieves relevant documents or data at the time of a query, making it significantly more accurate, adaptable, and context-aware.

What Is a RAG Model?

A RAG model is a hybrid system that combines two key components:

1. Retriever: This searches a knowledge base or database to identify the most relevant context for a given query.

2. Generator: The LLM that uses both the user prompt and the retrieved context to generate a coherent and factually grounded response.

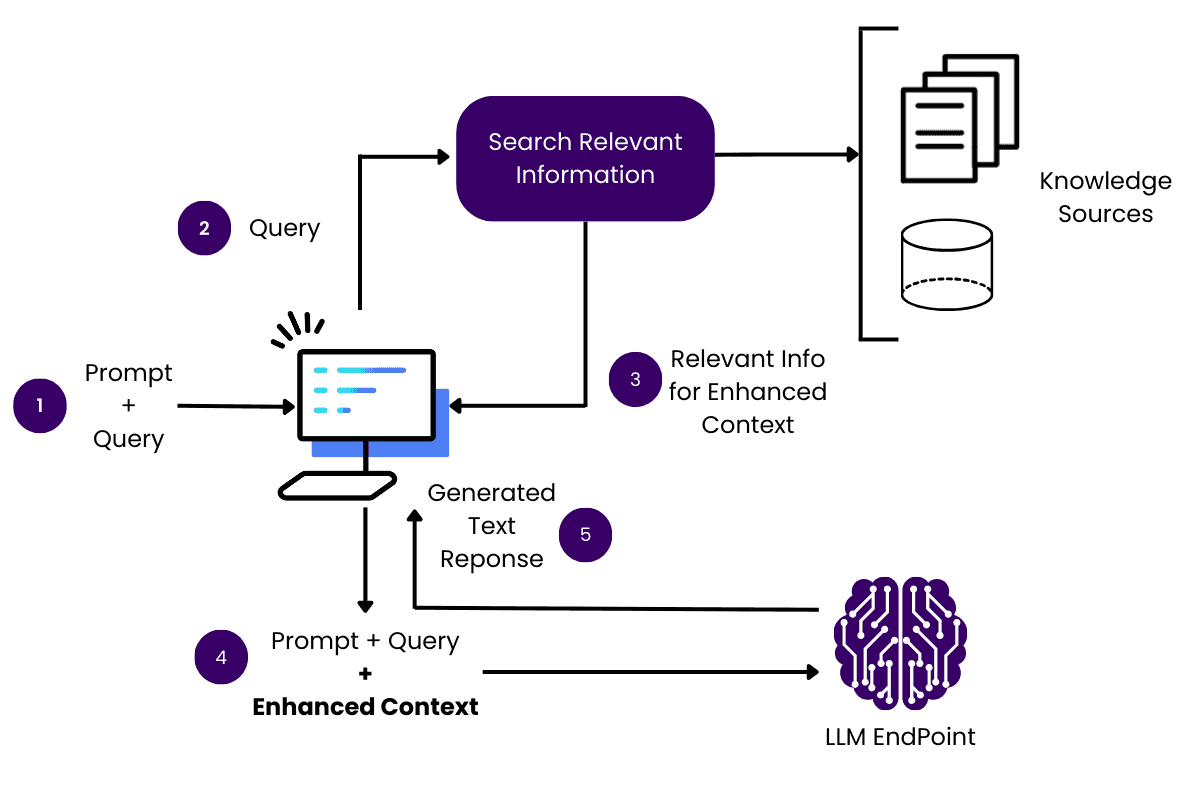

Credits: Substack

This dynamic pairing transforms a static LLM into an interactive tool capable of grounding responses in up-to-date and domain-specific knowledge.

How RAG Enhances LLM Performance

Traditional LLMs are powerful, but their capabilities are constrained by the data they were trained on. This leads to several limitations:

• Outdated knowledge, especially on fast-moving topics

• Inability to reference proprietary or internal data

• Risk of hallucinations or fabricated facts

By integrating retrieval into the generation process, RAG LLM systems can:

• Pull in fresh and relevant context from external sources

• Adapt to niche use cases without retraining

• Reduce hallucinations and increase factual accuracy



Credits: Hyperight

This makes rag models especially effective in enterprise AI, customer support, legal tech, and healthcare domains where up-to-date, accurate, and context-aware responses are mission-critical.

RAG vs. Fine-Tuning & Prompt Engineering

Fine-tuning and prompt engineering have their place, but they weren’t built for dynamic, high-stakes, real-world applications.

• Fine-tuning is resource-intensive and rigid. It requires retraining the model every time your data changes, hardly practical for fast-moving domains or internal knowledge bases.

• Prompt engineering tweaks the output, but it can’t access new information or verify facts. You’re still relying on what the model thinks it knows.

RAG model architecture changes the game by introducing retrieval into the generation loop:

• No retraining required: You update the data source, not the model.

• Real-time relevance: Responses are grounded in up-to-date, query-specific context.

• Scales with your data: Using methods like data chunking, RAG systems can efficiently index and retrieve from millions of documents.

Simply put, AI RAG architecture makes your LLM smarter, not by changing the model, but by changing what it has access to.

The RAG Workflow Explained

Understanding how RAG works requires unpacking its core workflow. At a high level, a RAG system enhances content generation by incorporating external knowledge at inference time, not just training time.

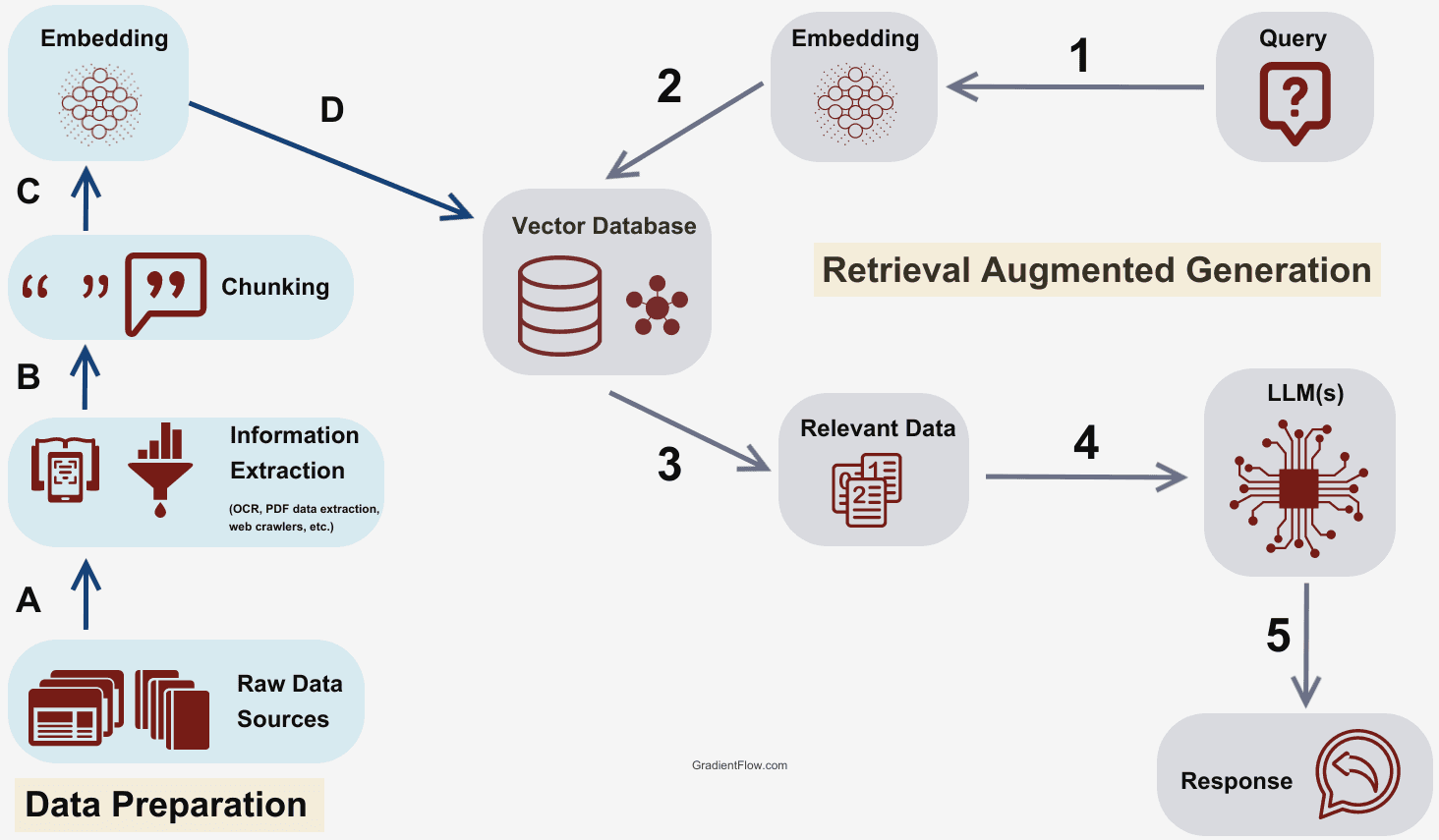

Credits: Acorn Labs

Let’s walk through the process step by step.

Step 1: User Query Input

A user submits a prompt or question, just as they would with a traditional LLM. But instead of generating an answer immediately, a RAG model first looks outward to gather relevant information.

This is the key difference: RAG doesn’t assume the model has all the answers. It goes and finds them.

Step 2: Document Retrieval Using Vector Search

The system uses embedding models to convert the user query into a high-dimensional vector representation. This vector is then matched against a vector database, a specialized system optimized for similarity search and semantic search.

The goal? Retrieve the most contextually relevant documents or passages that could inform the final output.

Step 3: Augmented Content Generation

Once the most relevant documents are retrieved, they are passed, along with the original query, to the generator component of the RAG system.

This LLM now has two sources of input:

• The original user prompt

• The retrieved context from external sources

Using both, the generator component creates a grounded, accurate, and context-aware response tailored to the user's needs.

Exploring RAG Architectures

Not all RAG implementations are created equal. As use cases grow in complexity, so too do the architectural choices for structuring retrieval and generation. Below is a breakdown of common and emerging RAG architectures, each with unique strengths depending on the type of query processing, scalability requirements, and data dependency.

1. Simple RAG

The baseline architecture: a retriever component fetches the top k documents based on a user query, and the LLM response generation happens using this context.

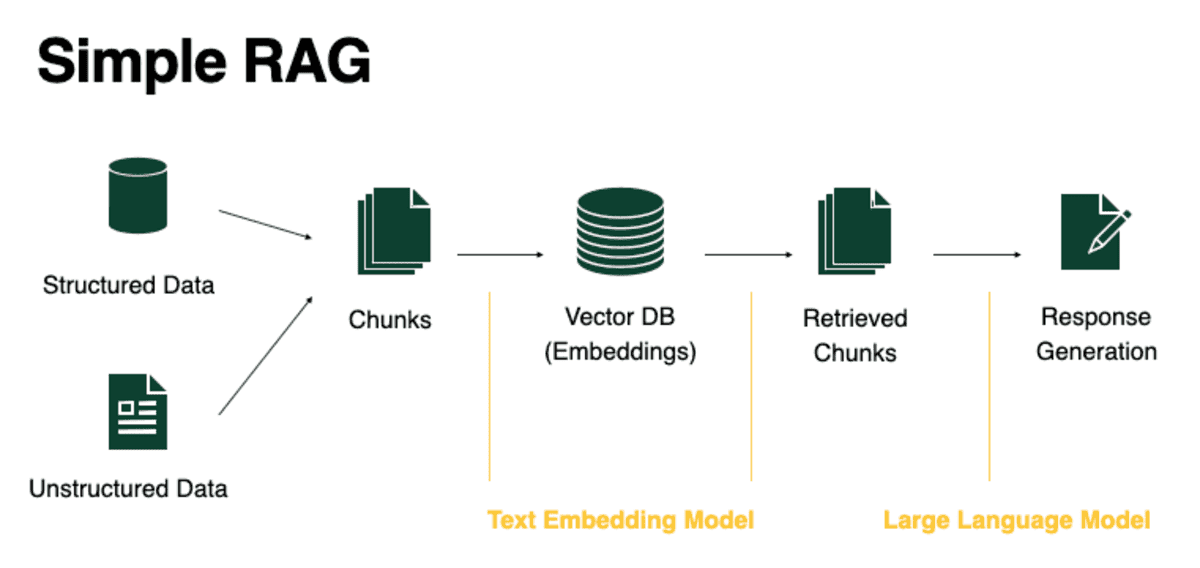

Credits: BentoML

• Ideal for straightforward question-answering systems

• Fast to deploy with minimal infrastructure

• Best for use cases with shallow content retrieval needs

2. RAG with Memory

Incorporates session-level memory, enabling the system to remember previous queries and responses across a session.

• Enhances query capabilities by allowing contextual carryover

• Useful for chatbots, customer support, and long-running interactions

• Increases complexity but improves continuity

3. Branched RAG

Splits a single query into multiple sub-queries, each handled by a separate retriever component. Outputs are later merged before generation.

• Handles multi-intent queries more effectively

• Excellent for layered information retrieval system design

• Improves accuracy when queries touch multiple domains

4. HyDe (Hypothetical Document Embedding)

Instead of retrieving documents first, the system generates a “hypothetical” context based on the user’s query. This synthetic document is then embedded and used to search the database.

• Improves recall for ambiguous queries

• Useful when traditional indexing strategies underperform

• Enhances grounding data by pre-structuring the retrieval intent

5. Multi-hop RAG

Performs multi-stage retrieval: the output of one content retrieval step becomes the input for the next.

• Best for in-depth research or multi-step reasoning tasks

• Aligns closely with how humans conduct investigations

• Ideal for legal, academic, and compliance applications

6. RAG with Feedback Loops

Incorporates user or system feedback to refine LLM response generation over time. This can be real-time (explicit feedback) or backend signals (implicit feedback).

• Improves long-term accuracy and relevance

• Enables system tuning without full retraining

• Highly compatible with enterprise analytics stacks

7. Agentic RAG

Agentic RAG combines RAG with autonomous agents that can plan and execute tasks using retrieved knowledge.

• Allows for complex, multi-turn, tool-augmented tasks

• Blends query processing, action-taking, and reasoning

• Enables integration with APIs, workflows, and databases

8. Hybrid RAG Models

Merges structured and unstructured data sources, thus supporting hybrid queries that span SQL tables, PDFs, APIs, and more.

• Ideal for enterprise knowledge management

• May combine symbolic search with semantic retrieval

• Requires sophisticated indexing strategies and orchestration

As RAG continues to evolve, these architectures reflect the increasing sophistication of GenAI workflows. Choosing the right structure depends on your domain, use case, and how critical grounding data and retrieval accuracy are to your application.

Implementing RAG in Production Environments

Deploying RAG in a production environment involves more than connecting a retriever to a generator. While the architecture can dramatically improve output quality and domain specificity, it introduces new engineering and operational challenges that require thoughtful planning. Here’s what to consider when scaling RAG applications from proof of concept to production.

Key Deployment Challenges

1. Data Retrieval Latency

The biggest bottleneck in many RAG system architectures is retrieval speed. Latency during the vectorization and similarity matching process can slow response times, especially with large knowledge bases.

• Optimize your vector database for low-latency access

• Use caching strategies for high-frequency queries

• Precompute embeddings for popular questions

2. Document Indexing and Storage

Efficient document indexing is critical to ensuring the retriever can surface relevant results. Poor indexing strategies or bloated databases lead to imprecise or irrelevant content retrieval.

• Use domain-specific embedding models for better precision

• Regularly prune outdated or duplicate content

• Chunk data intelligently to maintain semantic coherence

3. Keeping Knowledge Bases Up to Date

One of the strengths of RAG is that it allows LLMs to pull from external sources—but only if those sources are current.

• Automate ingestion pipelines for real-time data feeds

• Integrate with internal tools like Confluence, Google Drive, or Notion

• Schedule periodic re-indexing to maintain data freshness

Best Practices for Scalable RAG Deployment

To deploy a high-performance, production-ready RAG system architecture, teams should adopt a mix of technical optimization and workflow design.

• Follow a modular RAG pattern: Separate your retriever, generator, and orchestration logic for easier updates and debugging.

• Monitor precision and recall: Track how often retrieved content actually improves generation quality.

• Fine-tune retrieval on usage patterns: Adapt the system over time to user behavior and domain trends.

• Leverage hybrid indexing: Blend semantic and keyword-based search for flexible and robust content retrieval.

Teams exploring more complex use cases like autonomous agents or tool-augmented workflows can experiment with Agentic RAG architecture, where retrieval and generation are dynamically interleaved with planning and action-taking.

Tooling and Platforms for RAG Development

As Retrieval-Augmented Generation (RAG) becomes foundational to modern LLM workflows, a growing number of platforms have emerged to support its implementation. Here are some of the most notable tools available today:

• NVIDIA NeMo Retriever & NIM Microservices: An enterprise-focused framework for building domain-specific LLM pipelines with fine-tuned retrievers and optimized inference runtimes.

• AWS RAG Solutions: A set of composable tools, including Amazon Kendra, OpenSearch, and Bedrock, that allow developers to create RAG pipelines on top of AWS infrastructure.

• LangChain: Langchain is a popular open-source framework designed to orchestrate LLM applications using modular components for retrieval, generation, and memory.

These platforms offer strong performance and deep configurability, but they often come with trade-offs:

• Steep learning curves for teams unfamiliar with low-level infrastructure

• Built primarily for engineers, limiting collaboration with non-technical stakeholders

• Limited built-in tooling for experimentation, evaluation, and observability

Orq.ai: LLMOps Platform for Collaborative RAG Development

Orq.ai is a Generative AI Collaboration Platform where software teams build, ship, and optimize LLM applications at scale. By providing out-of-the-box tooling in a user-friendly interface, Orq.ai empowers developers and non-developers to work side-by-side, building reliable GenAI apps from the ground up, running them at scale, controlling output in real time, and continuously optimizing performance.

Whether you're launching your first RAG application or scaling a production-grade RAG system architecture, Orq.ai simplifies every step of the journey.

Overview of RAG UI in Orq.ai

Here’s an overview of our platform’s core capabilities:

• Generative AI Gateway: Integrate seamlessly with 200+ AI models from top LLM providers. Manage and orchestrate different model capabilities for GenAI use cases within one platform.

• Playgrounds & Experiments: Test and compare AI models, prompt configurations, RAG-as-a-Service pipelines, and more in a controlled environment. Experiment with hypotheses and assess AI-generated output before moving into production.

• Evaluators: Use programmatic evaluators, including RAGAS, human feedback integration, and LLMs-as-a-Judge, or bring your own custom evaluators to assess and improve the quality of your outputs.

• Deployments: Route LLM applications from staging to production environments with robust guardrails, retries, and fallback models for dependable, enterprise-grade deployments.

• Observability & Evaluation: Get granular insights into cost, latency, output quality, and overall operational efficiency. Trace and debug LLM workflows with full transparency into the rag pattern your app follows.

• Security & Privacy: Orq.ai is SOC2-certified and compliant with GDPR and the EU AI Act, offering built-in support for security-first teams managing sensitive or regulated data.

Create a free account on Orq.ai to explore our RAG solution in depth, or visit our documentation to dive deeper into our platform’s capabilities.

RAG Architecture: Key Takeaways

As organizations race to deliver intelligent, context-aware applications, RAG architecture is emerging as a cornerstone of modern AI systems. By augmenting large language models with real-time, external information retrieval, RAG reduces hallucinations, enhances accuracy, and delivers domain-specific performance that static LLMs simply can’t match.

From simple implementations to complex agentic RAG architectures, the flexibility and scalability of RAG make it a powerful choice for enterprises seeking better alignment between AI outputs and real-world data.

For organizations aiming to scale their GenAI capabilities, adopting a RAG model architecture is no longer a futuristic investment: it's a competitive necessity.

Platforms like Orq.ai make it easier than ever to implement RAG workflows with end-to-end tooling, collaboration features, and enterprise-grade observability, all without the complexity of piecing together disparate systems.

Create a free account to explore our RAG capabilities, or check out our docs to see how your team can build, deploy, and optimize RAG-based applications faster and more collaboratively.
